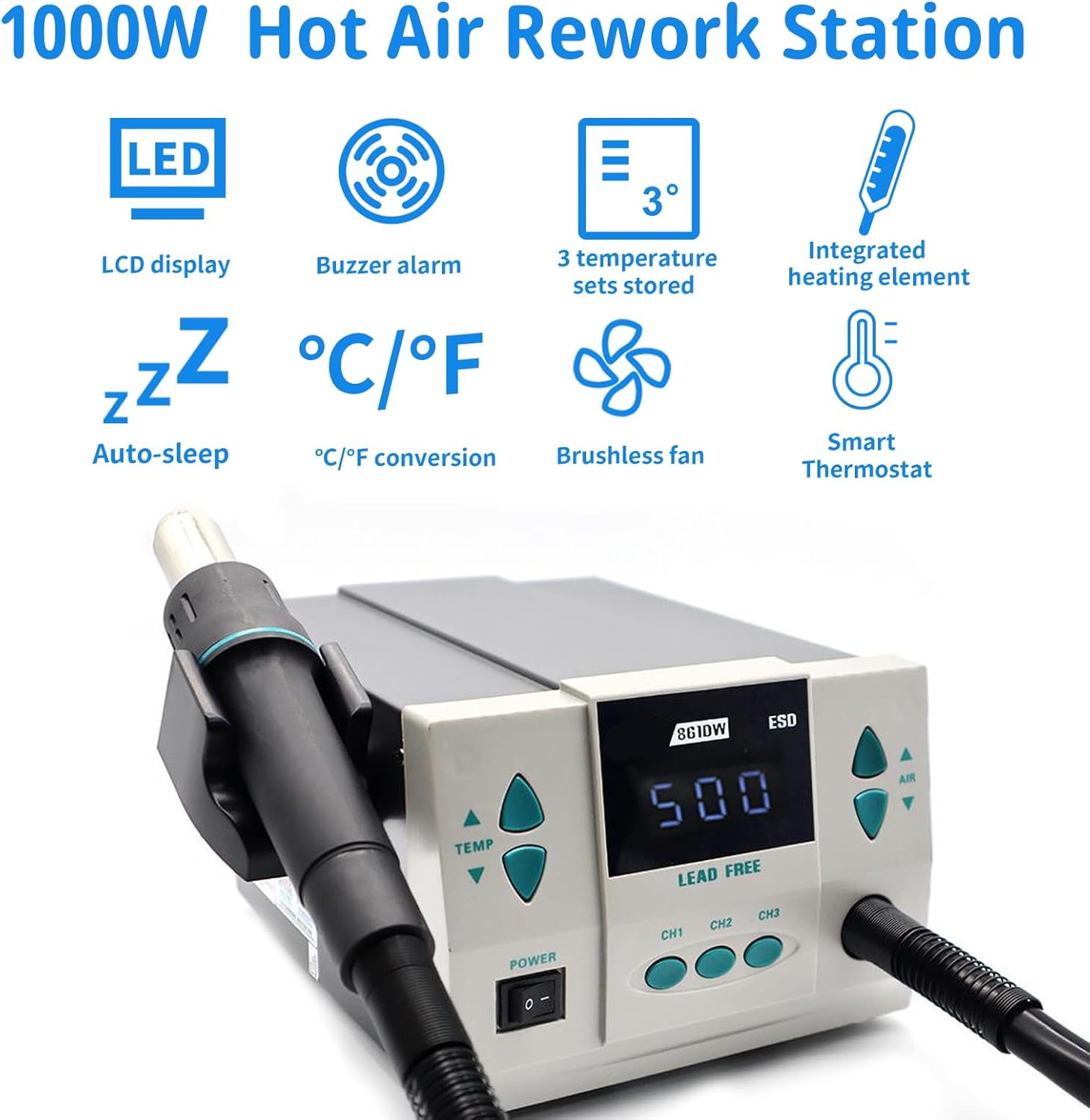

861DW Hot Air Rework Station,1000W Hot Air Station, 110V Desoldering Gun Hot Air Soldering Station Can Be Used for BGA Chip Soldering, Digital Maintenance (With 7 Nozzles)
$159.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kriyourcar.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$159.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kriyourcar.com
Free 30-day returns Details
Product details
| Management number | 210127692 | Release Date | 2026/04/02 | List Price | $64.00 | Model Number | 210127692 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 861DW REWORK STATION (Heating Fast and Adaptable to Various Heating Scenarios): Hot Air Rework Is Equipped With 1000W High Power, Combined With A Dedicated H616A Heating Core, With Fast Heating Speed And Sufficient Heat. The Temperature Adjustment Range Covers 100 ℃ -500 ℃, Which Can Meet The Disassembly And Soldering Of Various Electronic Components Such As BGA And IC. It Can Also Be Used In Various Heat Demanding Scenarios Such As Hot Forming, Heat Shrink Tubing Treatment, Preheating, Etc
- Closed Loop Precise Temperature Control Ensures Welding Quality: Hot Air Rework Adopts A Sensor Closed-Loop Design, Combined With Microcomputer Zero Crossing Trigger Temperature Control Technology, Which Can Achieve Precise Temperature Control, And Temperature Stability Is Not Affected By Air Flow, Effectively Avoiding Component Damage Caused By Temperature Fluctuations. In Addition, It Supports Digital Temperature Calibration, And Operators Can Accurately Adjust Temperature Parameters According To The Welding Needs Of Different Components, Greatly Improving The Success Rate Of Repairs
- Three Channel Storage, Efficient And Convenient Operation: Hot Air Rework Has Three Independent Working Channels CH1, CH2, And CH3, Each Of Which Can Be Individually Preset With Temperature And Air Volume Parameters. For Example, It Can Store Working Parameters For Different Scenarios Such As Mobile Phone Chips And Computer Motherboard Components Separately. Subsequent Use Does Not Require Repeated Settings, And Can Be Switched Directly. Equipped With An LCD Display Screen, It Can Display Real-Time And Clear Data Such As Current Temperature And Air Volume. Key Operations Can Quickly Adjust Parameters, Making It Easy To Get Started
- Intelligent sleep+cooling, extending device lifespan: The hot air rework is equipped with a magnetic switch. When the hot air handle is placed on the bracket, the device will immediately enter sleep mode, and parameters can still be set during sleep; Pick up the controller to quickly wake up and enter the working mode, which is both energy-saving and environmentally friendly, and reduces ineffective losses
- Multiple Protections For More Reliable Use: Hot Air Rework Has Password Protection And Button Locking Functions, Which Can Prevent Unrelated Personnel From Accidentally Modifying Preset Parameters. It Is Suitable For Scenarios Where Multiple People Share Workstations, Ensuring Consistency Of Work Parameters. The Body Design Is Compact, With Dimensions Of Only 188 × 245 × 135mm And A Weight Of Approximately 3.9kg. It Is Portable And Easy To Place, And Comes Standard With Three Specifications Of Air Nozzles: φ 4.4, φ 6.4, And φ 8.4. It Can Also Be Adapted To Optional Air Nozzles Such As 3mm And 12mm, Which Can Meet The Soldering Needs Of Different Sizes Of Components
| Display | LED |
|---|---|
| Voltage | 110 Volts |
| Wattage | 1000 watts |
| Brand Name | Patravious |
| Manufacturer | Patravious |
| Model Number | 861DW Hot Air Rework Station |
| Number of Channels | 3 |
| Included Components | No |
| Upper Temperature Rating | 500 Degrees Celsius |
| Item Dimensions D x W x H | 15.51"D x 9.25"W x 13.62"H |
